BlackBerry Z30 Disassembly/Tear Down/Tear Apart

Here is a coupon code that can be used on order over $5 to get discount in the website: ETS68AYU, which is valid before Dec. 31, 2014.

OEM BlackBerry Z30 LCD Screen and Digitizer Assembly with Frame - Black - With Verizon and Blackberry Logo

Features:
•  This part includes the BlackBerry Z30 LCD screen, digitizer touch screen, LCD frame and ear speaker.
•  This BlackBerry Z30 screen assembly has both Verizon logo and BlackBerry logo. This screen replacement is the Verizon version. Please donot confuse this with the BlackBerry Z30 LCD screen assembly with BlackBerry logo only.
•  This BB Z30 replacement screen is 100% OEM manufactured and assembled.
•  The BlackBerry Z30 screen replacement is available in two colors. This is the Black one.
•  This part is only compatible with the BlackBerry Z30. Please check your model before ordering.



Tools needed:

            1. T4 Philip screwdriver

            2. Tweezers

            3.  Case opening tool

tools needed
1.  Pry up the battery door cover.
remove the cover
2.Undo the 10 screws that securing the rear housing.
undo screws
3.Pry up the screen with the case opening tool. (Notice: handle carefully as there’s a flex cable connecting to the logic board.)
pry up screen
4.Pry up the clip, remove the flex cable carefully for its fragility.
disconnect flex cable

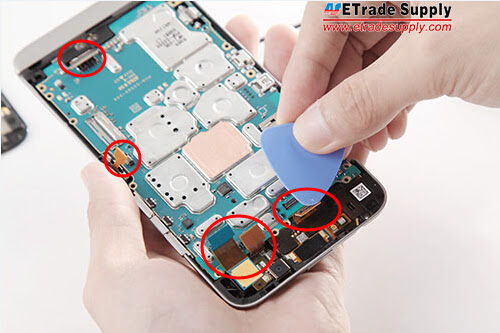

5.Pry up the connectors that securing the logic board, then take out the motherboard.
pry up flex cables and remove logic board
6.Remove the volume button and power button retaining bracket.
remove volume retaining bracket
7.Pry up the flashlight flex cable.
pry up flashlight flex cable
8.Remove the rear facing camera.
take out rear camera
9.Remove the flashlight flex cable from the rear housing slot.
remove flashlight flex cable
10.Take out the battery.
take out battery
11.Then, the BlackBerry Z30 has been disassembled.
the disassembly finished

2014年11月14日星期五

How to Repair an iPhone 6 Broken Screen

The Apple iPhone 6 features a 4.7-inch display and is protected by fingerprint-resistant oleophobic coating and shatter proof glass. If your iPhone 6’s screen becomes cracked, what should you do? DIY repair is a good choice if you have some experience or repair skills.

Here is a coupon code that can be used on order over $5 to get discount in the website: ETS68AYU, which is valid before Dec. 31, 2014.

Replacement Part for Apple iPhone 6 LCD Screen and Digitizer Assembly with Frame - Black - A Grade

OEM Apple iPhone 6 LCD Screen and Digitizer Assembly with Frame – Black
This Apple iPhone 6 LCD Assembly replacement contains:
● LCD Display
● Digitizer Touch Screen
● Front Frame
● Ear Speaker Mesh Cover

Specifications:
Color: Black
Screen Size: 4.7 inches
Resolution: 750 x 1334 pixels, 326 ppi pixel density
Display Type: LED-backlit IPS LCD, capacitive touchscreen, 16M
Protective Material: Shatter proof glass, oleophobic coating
Compatibility: Apple iPhone 6

This tutorial shows you how to replace a broken iPhone 6 screen step by step .

Tools Needed:
Screwdriver
Plastic Spudger Tool
Tweezers
Case Opening Tool
Suction Cup Tool

1. Power off the Apple iPhone 6.
iPhone 6 Disassembly
1. Power off the Apple iPhone 6.
1. Power off the Apple iPhone 6.
2. Undo the 2 charging port screws. (Notice: there’re lots of different screws inside, mark or separate them when disassembling to prevent confusion.)
2. Undo the 2 charging port screws.
3. Use the suction cup tool and case opening tool to separate the LCD assembly from the rear housing assembly. (Notice: be careful not to damage the flex ribbons.)
3. Use the suction cup tool and case opening tool to separate the LCD assembly from rear housing assembly.
4. Undo the 5 screws that lock the metal cover above the LCD assembly flex ribbon connectors.
4. Undo the 5 screws that locking the metal cover above LCD and Digitizer flex ribbon connectors.
5. Carefully pry up the 3 connectors.
IMG_9771
6. Undo the 3 screws from the home button bracket.
7. Undo the 3 screws of home button bracket.
7. Carefully pry up the home button flex ribbon connector, gently poke the home button and take it out.
IMG_9776 8. Pry up the home button flex ribbon connector, gently poke the home button and take it out.
8. Undo the 2 screws that lock the metal cover above the earpiece speaker and front facing camera.
IMG_9779 9. Undo the 2 screws that locking the metal cover above ear speaker and front facing camera.
9. Remove the front facing camera and the earpiece speaker.
10. Remove the front facing camera and the ear speaker.
10. Undo the 6 screws that lock the LCD frame and LCD back plate.
11. Undo the 6 screws that locking LCD frame and LCD back plate.
11. Use tweezers to carefully pick up the flex ribbon connector and remove the LCD back plate.
12. Use tweezers to pick up the sticker and remove the LCD back plate.
12. Separated the LCD assembly, metal plate and rear housing assembly.
13. Separated LCD assembly, metal plate and rear housing assembly.
13. Reassemble the metal plate and the new LCD assembly replacement, fasten the screws. Then assemble the home button.
IMG_9778
14. Replace the metal cover and lock it with the screws.
20140920_165033
15. Reassemble the earpiece speaker and cover the metal bracket, then fasten it with the screws.
20140920_165426
16. Connect the LCD screen assembly and the rear housing assembly.
20140920_165640
17. Replace the metal cover above the connectors.
20140923194450
18. Lock the metal cover with 5 screws.
20140923194508
19. Assemble the LCD screen assembly and the rear housing assembly.
iphone6 reassembly
20. Fasten the 2 charging port screws. Congratulations you’ve completely replaced your iPhone 6 screen.
QQ截图20140923192631
